Product Overview

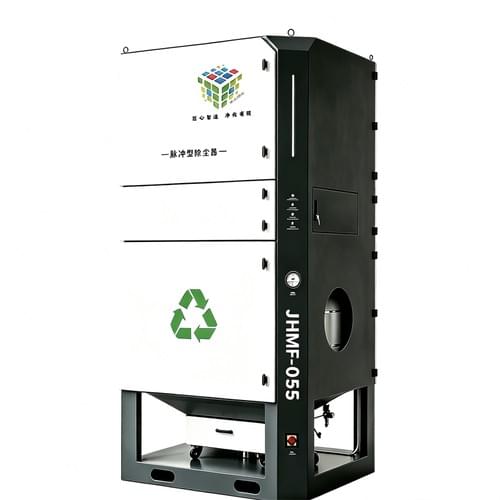

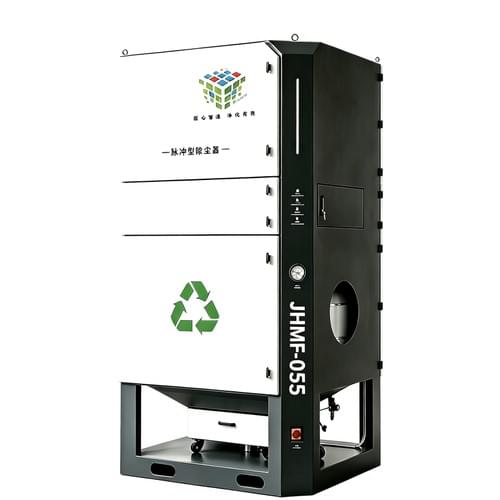

The Purification‑Cube series pulse dust collector is an integrated vertical standalone pulse cartridge dust‑removal unit. It adopts a modular structure with top‑side air intake and bottom dust collection, equipped with pleated filter cartridges and an automatic pulse‑jet cleaning system. Dust‑laden air is sucked by fan negative pressure; dust particles are intercepted and filtered by filter cartridges, and clean air is discharged either indoors or outdoors directly. A dust‑collection drawer is fitted at the bottom for convenient dust collection and disposal. Fitted with universal moving casters, the unit can be flexibly relocated. As compact and high‑efficiency industrial dust‑purification equipment, it is widely applied for point‑source dust control in workshops.

Scope of Application

1. Machinery processing industry: fume treatment for laser cutting, plasma cutting, grinding, polishing, drilling and welding.
2. Hardware & sheet‑metal industry: dust collection for sandblasting, rust removal, stamping‑grinding and abrasive‑wheel cutting.
3. Woodworking industry: wood dust generated by sawing, grinding and carving.
4. Powder‑processing industry: dust emissions from feeding, mixing, crushing and packaging operations.
5. Auto repair & coating industry: dust from sheet‑metal grinding and paint‑mist pre‑treatment for small spray booths.
6. Other working conditions: dry‑type dust produced in pharmaceutical, food, plastic and rubber processing. The unit can operate as standalone point‑source dust extractor or multiple units can be networked for centralized dust treatment.

Core Technical Features

1. Vertical modular design: The complete machine can be disassembled layer‑by‑layer. The filter chamber, pulse‑cleaning chamber and dust‑collection chamber are separate modules. Filter‑cartridge disassembly and maintenance do not require full‑machine teardown for time‑saving easy operation.
2. Automatic pulse‑jet cleaning system: Solenoid pulse valves inject compressed air on a timer to blow off accumulated dust from cartridge surfaces in reverse airflow. Filter cartridge permeability stays stable for a long term; frequent manual cleaning is avoided and service life is greatly extended.
3. High‑precision cartridge filtration: Pleated polyester filter cartridges provide large filtration area and low air resistance. Conventional dust filtration efficiency reaches **99.9%**, complying with workshop environmental‑protection emission inspection standards.
4. Flexible mobile deployment: Brake‑equipped universal casters enable point‑source dust removal following moving workstations. No fixed ductwork installation is required, suitable for production lines and temporary processing spots.
5. Sealed dust‑collection structure: Fully welded sheet‑metal construction prevents dust leakage. The pull‑out bottom dust drawer enables dust disposal without secondary dust spillage for clean and eco‑friendly operation.
6. Visualized monitoring: A pressure gauge is mounted on the unit body to display filter‑cartridge differential pressure in real‑time for intuitive clogging status judgement and convenient operation & maintenance management.
7. Small footprint: Vertical layout occupies minimal floor space. It fits installation in compact workshops or workstation corners without taking up production‑operation space.
8. Stable & low‑noise operation: Matched with dedicated centrifugal fan for sufficient air power and low running noise, suitable for long‑duration continuous indoor operation.
